• For use in hazardous areas
• Large convection surface
• DIN rail and screw mounting
• Ready-to-use with strain relief
• Maintenance free

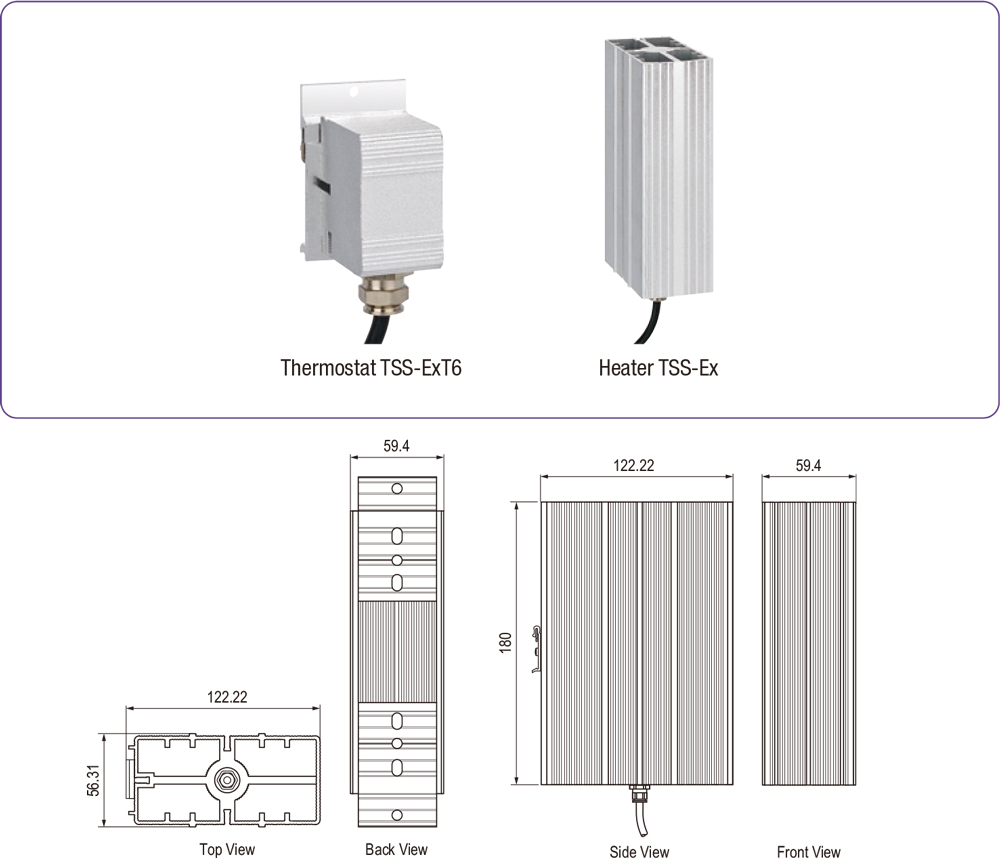

Compact convection heater is for use in hazardous areas for prevention of formation of condensation, temperaturefluctuations, and for protection against frost in control and switch cabinets, as well as in measuring equipment.
Technical Data
TSS-ExT5 / TSS-ExT4 / TSS-ExT3 | |
Heating element | high performance cartridge |
Heater body | aluminium profile, silver anodised |
Connection | Si HF-JZ 3×0.5mm² cable, length 1m |
Connection PE | 4mm² |
Mounting | screw fixing |
Fitting position | vertical airflow (connection on bottom) |
Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP65/I(earthed) |
Ambient temperature | -76 to +122°F (-60 to +50°C) |
Art. No. 230VAC | Art. No. 120VAC | Heating capacity | Temperature Class | Dust Temperature Value | Length (L) | Weight (approx.) |
ExT5.050.0 | ExT5.050.1 | 50W | T5 | T100℃ | 180mm | 1.04kg |
ExT5.100.0 | ExT5.100.1 | 100W | T5 | T100℃ | 180mm | 1.05kg |
ExT4.050.0 | ExT4.050.1 | 50W | T4 | T135℃ | 180mm | 1.04kg |
ExT4.100.0 | ExT4.100.1 | 100W | T4 | T135℃ | 180mm | 1.05kg |
ExT4.150.0 | ExT4.150.1 | 150W | T4 | T135℃ | 180mm | 1.06kg |
ExT4.200.0 | ExT4.200.1 | 200W | T4 | T135℃ | 180mm | 1.06kg |
ExT3.050.0 | ExT3.050.1 | 50W | T3 | T200℃ | 180mm | 1.04kg |
ExT3.100.0 | ExT3.100.1 | 100W | T3 | T200℃ | 180mm | 1.05kg |
ExT3.150.0 | ExT3.150.1 | 150W | T3 | T200℃ | 180mm | 1.06kg |
ExT3.200.0 | ExT3.200.1 | 200W | T3 | T200℃ | 180mm | 1.06kg |
ExT3.250.0 | ExT3.250.1 | 250W | T3 | T200℃ | 180mm | 1.06kg |
