• Compact design
• Set temperature
• High switching capacity
Compact small mechanical thermostat for temperature regulation and monitoring of heaters, for example in transmitter cabinets, control panels and measuring equipment which are deployed in areas with explosion hazard. The special switch construction enables high response accuracy, small switch temperature difference and a very long service life. High switching performance allows direct control of the heaters.
Technical Data
REx 011 | |
Switch temperature difference | 4K (±1K tolerance) |
Sensor element | thermostatic bimetal |
Contact type (1-pole) | opens with rising temperature |
Service life | > 100 000 cycles |
Max. switching capacity | 250VAC, 1.3 (0.65) A |
Max. inrush current | AC 4A for 12 sec. |
Connection | Si HF - JZ 3×0.5mm², length 1m |

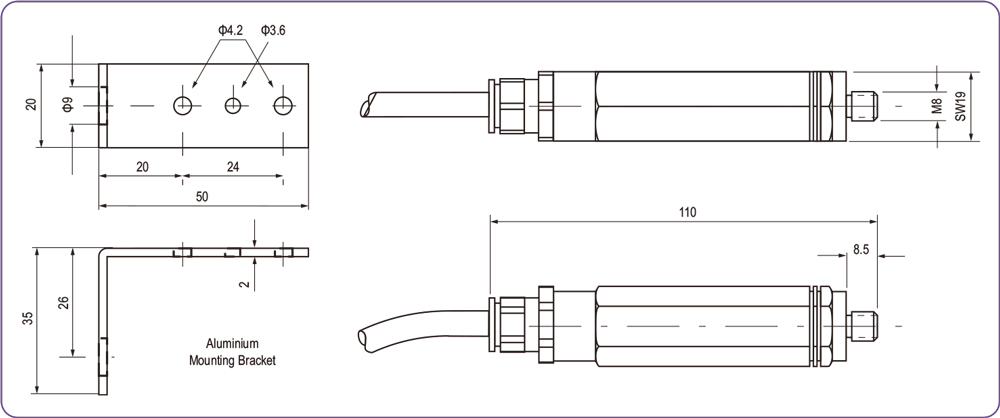

Mounting | mounting bracket with nut M8 (see illustration) |
Casing | aluminium, black anodised |
Dimensions | length 110mm |
Weight | approx. 0.2kg |
Fitting position | variable |
Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP65 / I (earthed) |
Art. No. | Ambient temperature¹ | Switch-off temperature | Ex protection type εx II 2 GD | |
01180.0-00 | 0 to +60°C | +15°C (±4K tolerance) | Gases: Ex d IIC T6 Gb | Dusts: Ex tb IIIC T85°C Db IP6X |
01181.0-00 | +32 to 140°F | +25°C (±4K tolerance) | Gases: Ex d IIC T6 Gb | Dusts: Ex tb IIIC T85°C Db IP6X |
¹ Ambient temperature inside of the cabinet/enclosure
