• Direct fixing of small appliances and 35mm DIN rails
• Simple to mount
• Self-adhesive

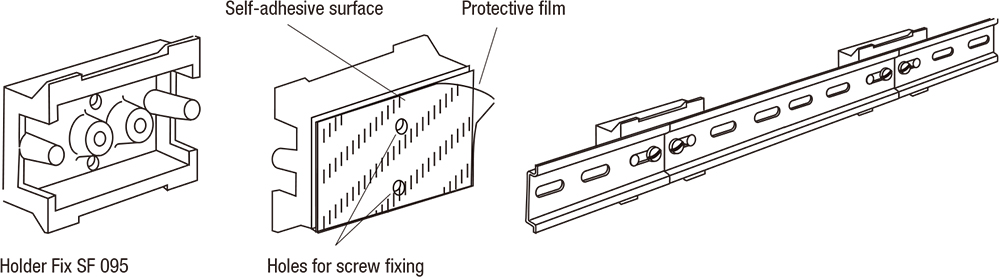

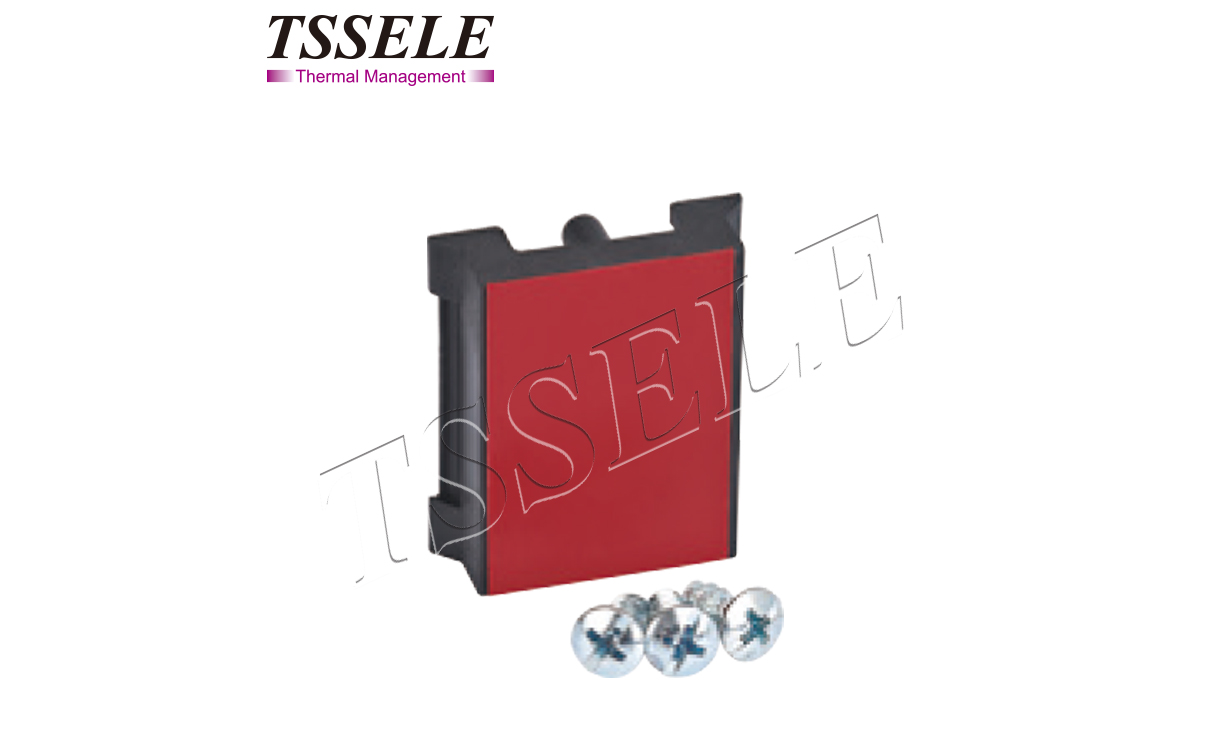

With Holder Fix small appliances can be mounted in enclosures significantly quicker, easier and more economically than before, without drilling holes. Mounting DIN rails is a simple matter with Holder Fix. Longer rails are mounted on several Holder Fix units and joining two rails is also not a problem. Subsequent changes and the mounting of additional appliances can be carried out with ease – even in confined spaces. Holder Fix is a self-adhesive plastic unit with an adhesion power which will bear a continuous load of 500g. The high-performance industrial adhesive band is also nonageing and designed with safety tolerances.
Technical Data
SF 095 | |
Load | 500g after a 24h waiting period¹ |
Mounting | self-adhesive (non-ageing, high-performance adhesive band) |
Material | plastic according to UL94 V-0 |
Dimensions | 43×38×14mm |
Screw pitch | 12.8mm, Ø3.6mm; for perforated 35mm DIN rails |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
¹ depending on the conditions of use (e.g. surface condition, size of the device to be mounted, etc.) higher loads were achieved.
Installation: Holder Fix can only be mounted on smooth surfaces, e.g. metals, lacquered surfaces and plastics (except polyethylene, polypropylene and rubber). The surfaces must be dry, free from dust, oil, separating agents and other contamination.
Note: When using the Holder Fix as a DIN rail holder, only DIN rails (EN 60715) with perforation 18×6.2mm or 18×5.2mm can be used.
Art. No. | 1 packing unit | Weight (approx.) |
09510.0-01 | 1 pc | 12g |
