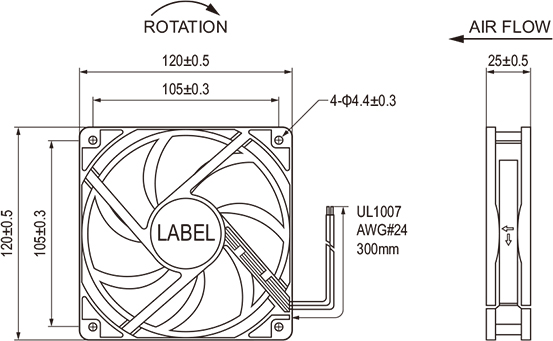

DC12025 DC Fan 120×120×25mm
Quantity:
Price inquiry Join the inquiry basket
Product description

General Specification

Frame / Impeller: Plastic

Lead Wire: AWG#24 or Equivalent (+)Red, (-)Black

Ball Bearing 50,000Hrs(40°C)

Sleeve Bearing 30,000Hrs(40°C)

Operating temperature: -10°C~+70°C

Storage temperature: -40°C~+70°C




Art. No.

#
Bearing
Type

Rated
Voltage
(VDC)

Operating
Voltage
(VDC)

Input
Current
(A)

Input
Power
(W)

Speed
(RPM)

Max Air Volum

Max Static Pressure

Noise
(dB-A)

Weight
(g)

(CFM)

m3/min

Inch-H2O

mm-H2O

DC12025#12L

B.S

12

7.0~13.8

0.14

1.68

1900

62.93

1.78

0.154

3.93

35

140

DC12025#12M

B.S

12

7.0~13.8

0.23

2.76

2500

82.67

2.34

0.246

6.25

39

140

DC12025#12H

B.S

12

7.0~13.8

0.4

4.8

3100

103.75

2.94

0.371

9.43

44

140

DC12025#12U

B.S

12

7.0~13.8

0.53

6.36

3400

113.11

3.206

0.43

10.92

49

140

DC12025#24L

B.S

24

14.0~27.6

0.09

2.16

1900

62.93

1.782

0.154

3.93

35

140

DC12025#24M

B.S

24

14.0~27.6

0.14

3.36

2500

82.67

2.34

0.246

6.25

39

140

DC12025#24H

B.S

24

14.0~27.6

0.23

5.52

3100

103.75

2.94

0.371

9.43

44

140

DC12025#24U

B.S

24

14.0~27.6

0.28

6.72

3400

113.11

3.2

0.43

10.92

49

140
