General Specification

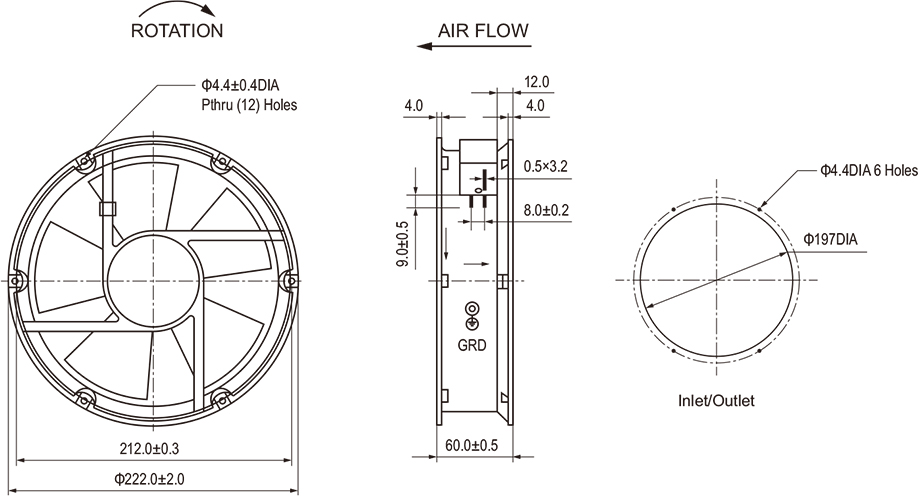

Size: 220×60mm

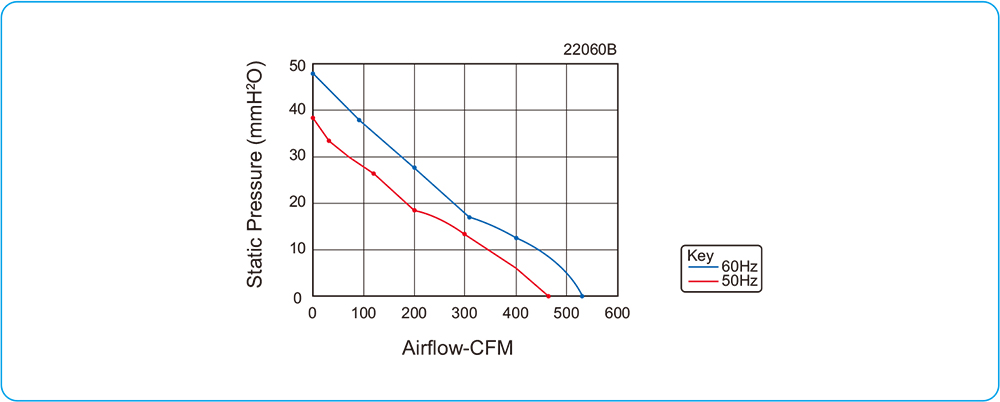

Airflow: 780~900m3
/hr 460~530CFM
Weight: 1600g
Noise: 63-68dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22
Motor: Capacitor-Run Induction Motor
Operation Temperature: -10°C~+70°C
Specific Parameters
Art. No. | Bearing Type | Voltage (V) | Freq. (Hz) | Current (A) | Power (W) | Speed (RPM) | Noise (dBA) | Air Flow | Phase | Capacito | |
M3/hr | CFM | ||||||||||
NA22060-110B-(MG/FG) | Ball | 110 | 50/60 | 0.45 | 60 | 2500 | 65 | 890 | 530 | 1 | 3.3μf/250V |
NA22060-230B-(MG/FG) | Ball | 230 | 50/60 | 0.22 | 60 | 2500 | 65 | 890 | 530 | 1 | 1.0μf/500V |
NA22060-380B-(MG/FG) | Ball | 380 | 50/60 | 0.20 | 60 | 2600 | 65 | 890 | 530 | 1 | 1.0μf/500V |
"B" means Ball,
Current, Speed can be customer made
