ACCESSORIES
Connectors and cables for electrical connection are not included in the delivery of the LED 025. These parts can be ordered separately. Sets, consisting of lamp and accessories, are available on request.

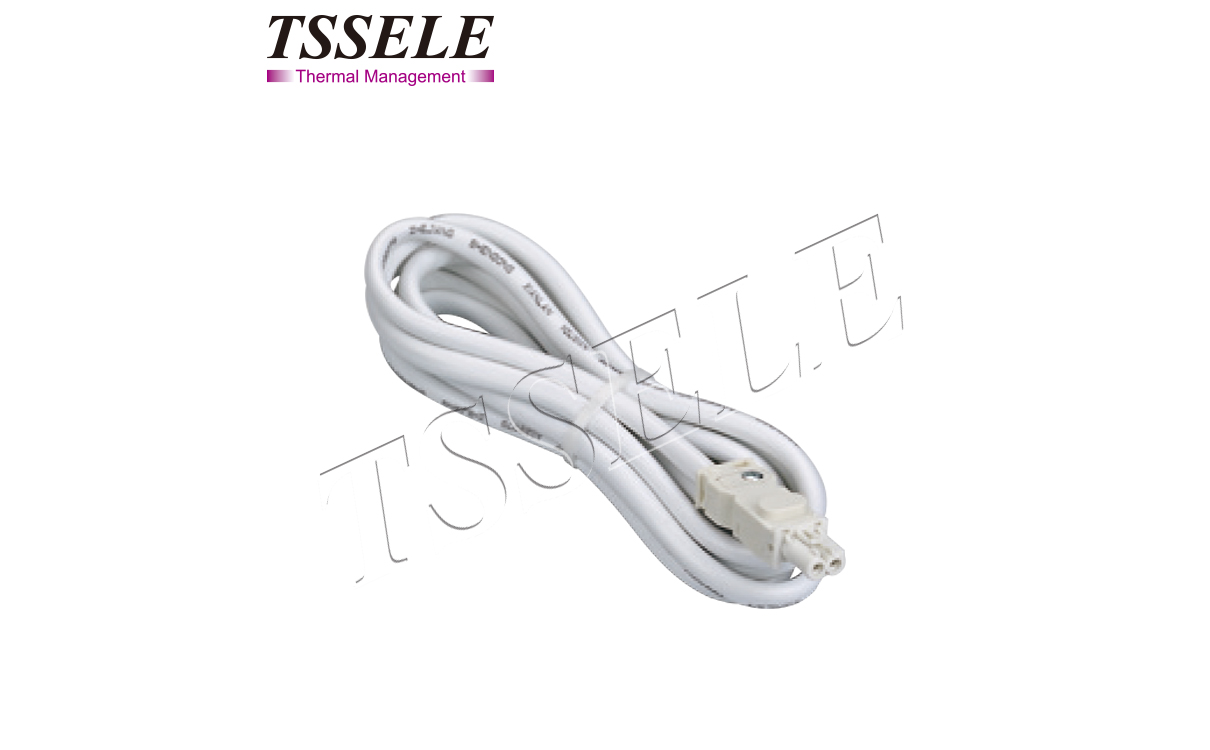

CONNECTION CABLE WITH FEMALE CONNECTOR AND OPEN END
Art. No. | Model | Length | Voltage type | Use for |
244356 | connection cable 2×1.5mm² with female connector | 2.0m | AC | power input |
244356 | connection cable 2×1.5mm² with female connector | 2.0m | AC | power input |

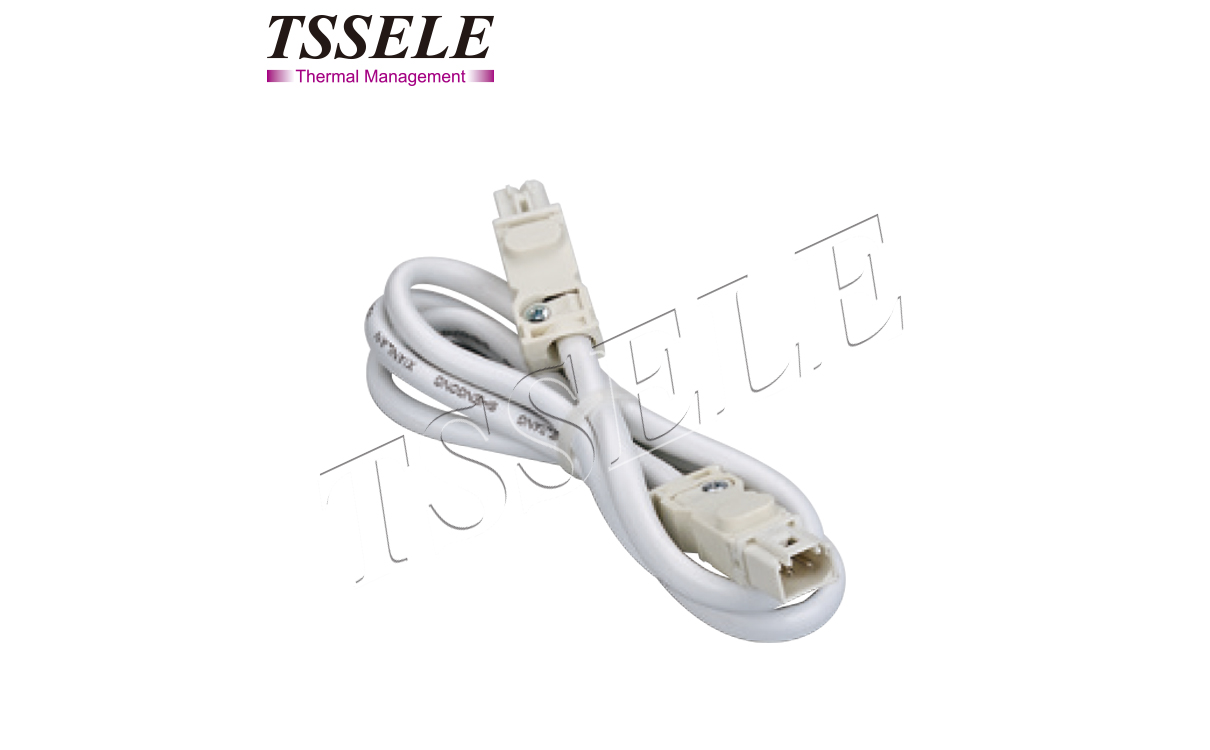

EXTENSION CABLE WITH 2 CONNECTORS FOR DAISY CHAIN CONNECTION
Art. No. | Model | Length | Voltage type | Use for |
244358 | extension cable 2×1.5mm² with 2 connectors | 1.0m | AC | daisy chain |
244359 | extension cable 2×AWG 15 with 2 connectors | 1.0m | AC | daisy chain |
FEMALE / MALE CONNECTORS
Art. No. | Model | Color | Voltage type | Use for |

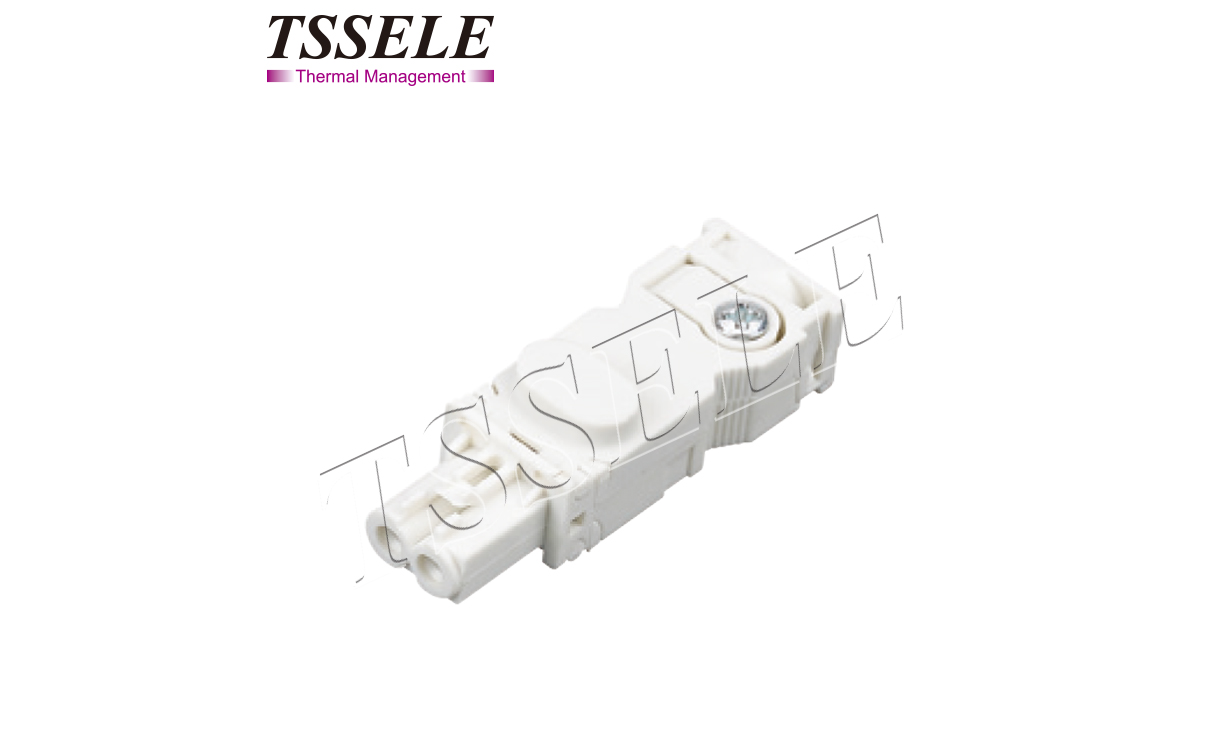

264057 | female connector | white | AC | power input |

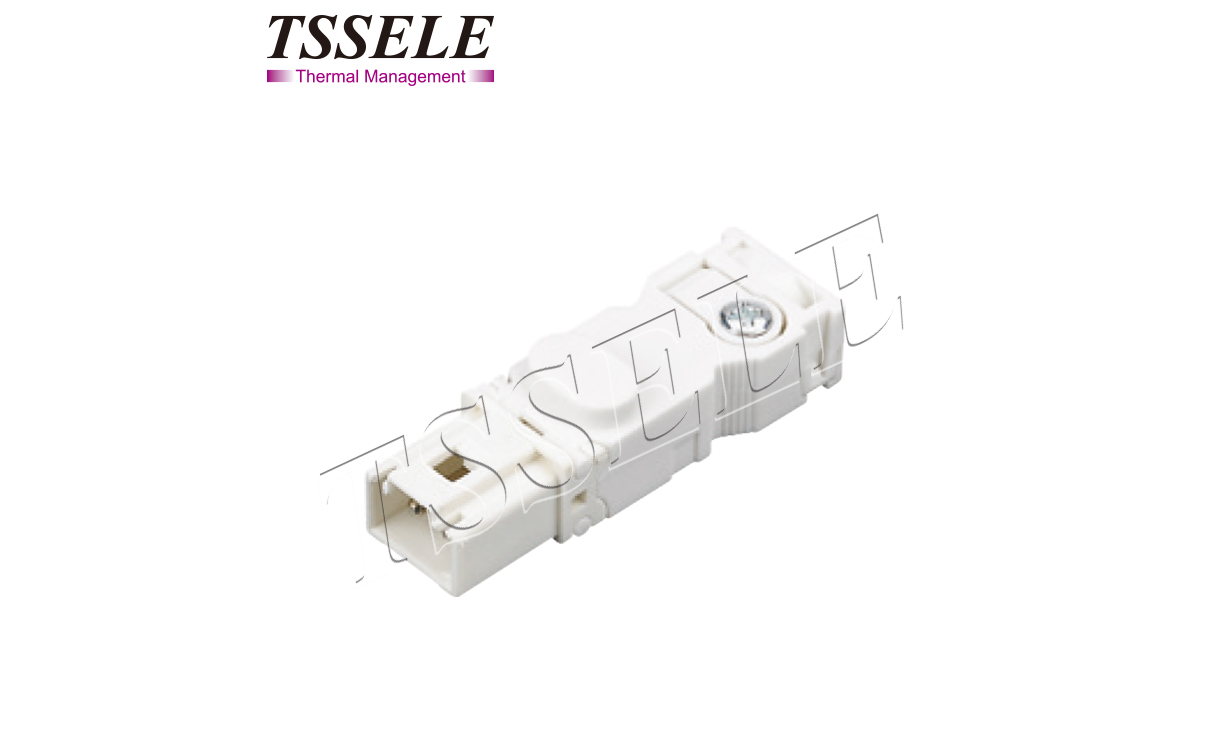

264058 | male connector | white | AC | power input |
CONNECTION EXAMPLE

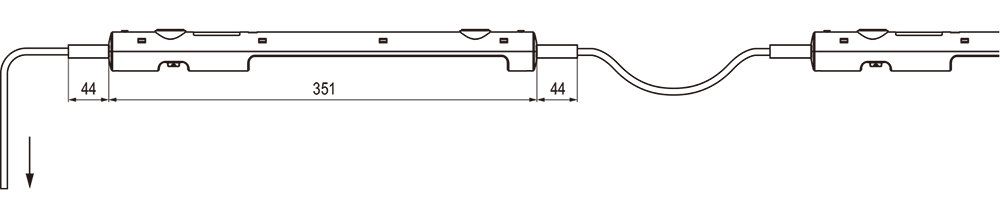

This illustration shows the LED 025 lamp in a daisy chain application. The lamps are conveniently connected via quick connection plugs – up to 10 (5) lamps max. can be daisy-chained this way. The snap lock connectors ensure a stable electrical connection even if subjected to heavy vibration. The connection example shows a 230VAC application, using the following cables: connection cable with female connector, Art. No. 244356 (1); daisy chain extension cable with 2 connectors, Art. No. 244358 (2).
Female/male connectors are also available to assemble cables in non-standard lengths.
