Axial fan, ball bearing

service life L10 at +40°C (+104°F): min. 56,000h rotor metal

Connection

3-pole clamp for 2.5mm², clamping torque 0.8Nm max.

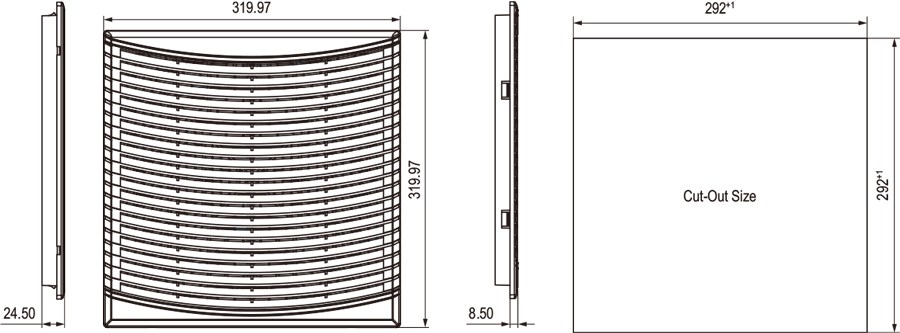

Enclosure cut-out

292×292⁺¹ mm

Mounting frame

screw fixing type, easy to open the cover

Filter mat

G4 acc. to DIN EN 779, filtering degree 94%

Filter material

ABS or PC/ABS with UL listed and RoHS

Operating/Storage temperature

-25 to +65°C (-13 to +149°F) / -40 to +70°C (-40 to +158°F)

Operating/Storage humidity

max. 75% RH (non-condensing)

Protection class

IP55 / I (earthed)

FN323

-

without fan

-

-

-

-

-

FNF323-230A-C

230VAC

200×200×60

780

460

60

0.22

65

FNF323A-230B-C

230VAC

200×200×60

780

460

60

0.22

65

FNF323A-230C-C

230VAC

Ø220×60

890

530

60

0.22

65

FNF323A-230D-C

230VAC

225×225×80

1000

588

57.2

0.255

68

FNF323-230E-C

230VAC

280×280×80

2570

1512

118

0.51

70

FNF323-115A-C

115VAC

200×200×60

780

460

60

0.4

65

FNF323A-115B-C

115VAC

200×200×60

780

460

60

0.4

65

FNF323A-115C-C

115VAC

Ø220×60

890

530

60

0.45

65

FNF323A-115D-C

115VAC

225×225×80

1000

588

57.2

0.52

68

FNF323-115E-C

115VAC

280×280×80

2570

1512

77

0.7

70

FNF323-400A-C

400VAC

200×200×60

780

460

60

0.2

65

FNF323A-400B-C

400VAC

200×200×60

780

460

60

0.2

65

FNF323A-400C-C

400VAC

Ø220×60

890

530

60

0.2

65

FNF323A-400D-C

400VAC

225×225×80

1000

588

57.2

0.15

68

FNF323-400E-C

400VAC

280×280×80

2570

1512

118

0.38

70

FNF323A-12-C

12VDC

200×200×60

1008

700

24

2

68

FNF323A-24-C

24VDC

200×200×60

1008

700

24

1

68

FNF323A-48-C

48VDC

200×200×60

1008

700

24

0.5

68
