Product Applications:
Out products are widely used in the control panels, junction boxes, power distribution box, automation equipment, electronic and power device, welding machine, packing etc.
Normal Color: RAL 7035, RAL 7032
Technical Data
TSS-TF-D | |
Using life | service life L10 at +40°C (+104°F): min. 50,000h rotor metal |
Connection | 3-pole clamp for 2.5mm², clamping torque 0.8Nm max. |

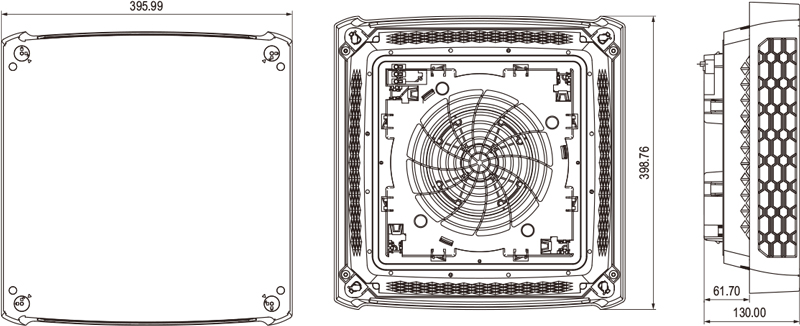

Dimensions | 400×135×400mm |
Enclosure cut-out | 258×258+1 mm |
Centrifugal Fan | capacitive motor |
Filter mat | G4 |
Filter material | ABS |
Operating temperature | 50 Hz: -25 to +55°C (-13 to+ 131°F), 60 Hz: -25 to +35°C (-13 to +95°F) |
Storage temperature | -40 to +70°C (-40 to+ 158°F) |
Operating/Storage humidity | max. 75% RH (non-condensing) |
Protection type/Protection class | without filter mat: IP22, with filter mat: IP55 |
Technical Parameters
Art. No. | Voltage (V) | Air flow rate (free blow) no filter mat (m3/h) | Air flow rate (free blow) with filter mat (m3/h) | Power consumption (W) | Current consumption (A) | Noise level (dBA) |
TSS-TF-D | without fan | - | - | - | - | - |
TSS-TFD230A | 230VAC | 570/620 | 430/465 | 80/88 | 0.34/0.4 | 66/69 |
TSS-TFD230B | 230VAC | 910/1010 | 675/702 | 140/161 | 0.61/0.66 | 69/73 |
TSS-TFD230C | 230VAC | 1250/1350 | 870/960 | 236/256 | 1.05/1.25 | 73/76 |
TSS-TFD230D | 230VAC | 1650/1750 | 1250/1350 | 278/383 | 1.2/1.25 | 74/78 |
TSS-TFD115A | 115VAC | 570/620 | 430/465 | 67/89 | 0.58/0.81 | 66/69 |
TSS-TFD115B | 115VAC | 910/1010 | 675/702 | 100/120 | 0.85/0.96 | 69/73 |
TSS-TFD115C | 115VAC | 1250/1350 | 870/960 | 145/210 | 1.44/1.85 | 73/76 |
TSS-TFD115D | 115VAC | 1650/1750 | 1250/1350 | 200/260 | 1.8/2.5 | 74/78 |
TSS-TFD380A | 380VAC | 570/620 | 430/465 | 60/84 | 0.15/0.21 | 66/69 |
TSS-TFD380B | 380VAC | 920/1020 | 675/702 | 92/118 | 0.19/0.24 | 69/73 |
TSS-TFD380C | 380VAC | 1250/1350 | 870/960 | 127/187 | 0.23/0.3 | 73/76 |
TSS-TFD380D | 380VAC | 1650/1750 | 1250/1350 | 190/252 | 0.31/0.4 | 74/78 |
