• Screw wiring terminal connector
• Dynamic heating up
• Wide voltage range
• Energy saving
• Clip fixing and screw fixing
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.
Technical Data
TSS 200 | |
Operating voltage | 120-250V AC/DC or 12V DC or 24V DC or 48V DC¹ (min. 110V, max. 265V) |
Heating element | PTC resistor - temperature limiting |
Heater body | extruded aluminium profile, anodised |
Connection | screw wiring terminal connector, for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5-2.5mm² |
Connection casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail and screw fixing |
Fitting position | vertical airflow (air outlet up, connection on bottom) |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / I (earthed) |
Note | other voltages on request |
¹ Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

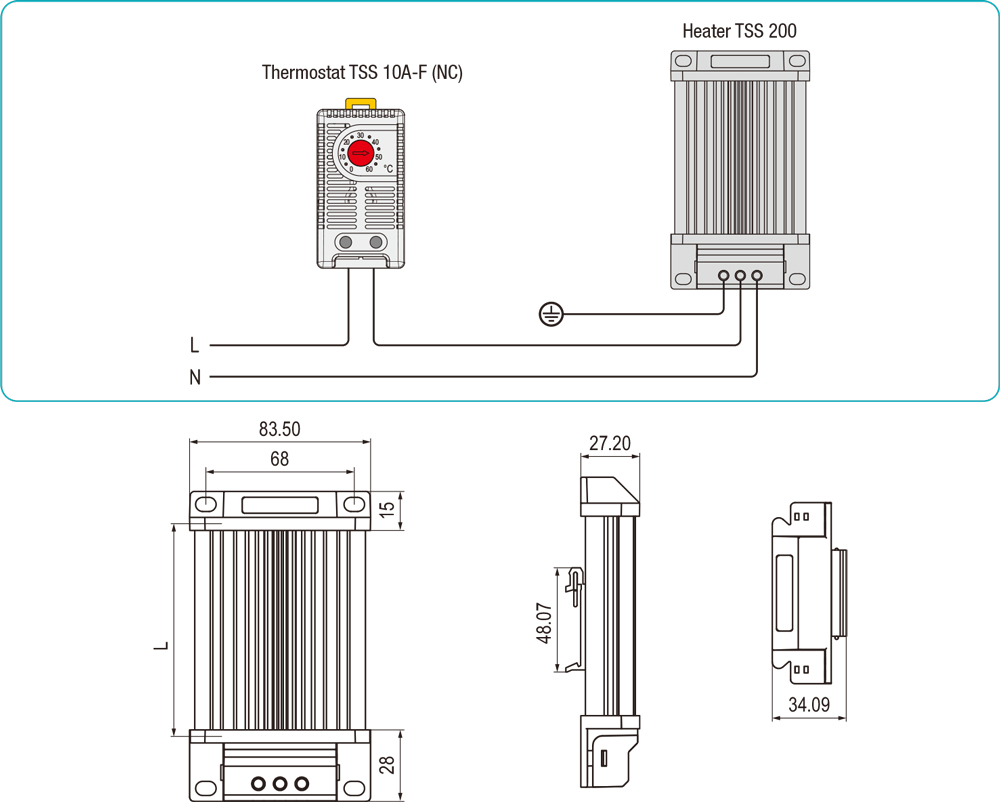

Example of connection
Art. No. | Heating capacity² | Length (L) | Weight (approx.) |
200015 | 15W | 60mm | 0.165kg |
200030 | 30W | 60mm | 0.165kg |
200045 | 45W | 60mm | 0.165kg |
200060 | 60W | 100mm | 0.23kg |
200075 | 75W | 100mm | 0.23kg |
200100 | 100W | 100mm | 0.23kg |
² at +20°C (+68°F) ambient temperature
